MR Knee WO MSK Protocol

Scan notes:

ACL hardware: Usually does not obscure internal structures enough to warrant changing the protocol – stick to the usual protocol unless it obviously obscures too much.

Femoral / Tibial rods and plates: (If Necessary)

  • Do non-fat-sat mid-TE (axial, sagittal, coronal) instead of fat-sat
  • Add a coronal STIR

Last updated: 4/8/19
Charge as: Knee WO
Scanner preference: 3T only
Coil: Knee Coil

Plane Weighting Mode Slice Gap FAT SAT FOV Notes

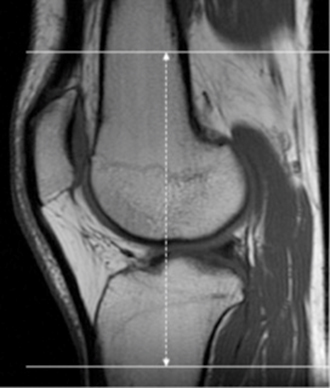

AXIAL T2 SPAIR TSE 2.5-3 mm 0.5mm SPAIR 15cm 3cm above and below knee joint
AXIAL T1 TSE 2.5-3 mm 0.5mm None 15cm 3cm above and below knee joint
COR PD (TE=20msec) TSE 2.5-3 mm 0.5mm None 15cm Angle to femoral condyles to patella
COR T2 SPAIR TSE 2.5-3 mm 0.5mm SPAIR 15cm Angle to femoral condyles to patella
SAG PD (TE= 20msec) TSE 2.5-3 mm 0.5mm None 15cm Angle to lateral condyle
SAG T2 SPAIR TSE 2.5-3 mm 0.5mm SPAIR 15cm Angle to lateral condyle
MR Knee WO MSK Protocol image 2
