MR Orbits WO Neuro Protocol

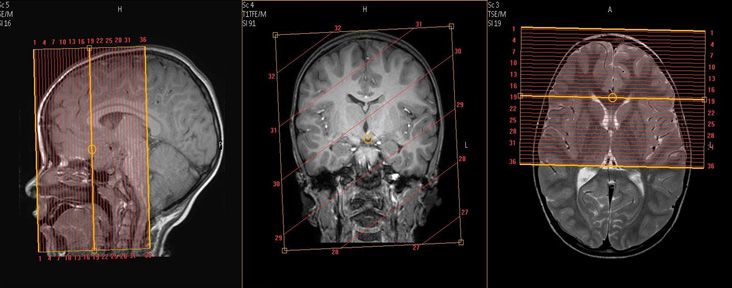

Coronal orbits coverage: Anterior margin of globe to anterior surface of pons, perpendicular to axis of the orbital segment of the optic nerves.

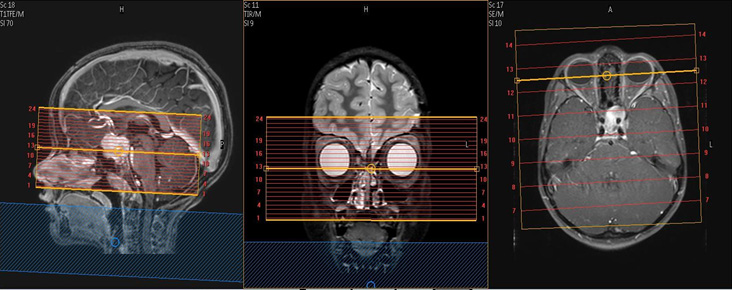

Axial orbits coverage:  Superior margin of orbital rim to inferior margin of orbital rim, angled to be in-plane with the orbital segments of the optic nerves.

Last updated: 3/18/22
Charge as: Orbits WO
Scanner preference: Not MR1 (no mDixon).
Coil: Head

Plane Weighting Mode Slice (mm) Gap (mm) FAT SAT FOV (cm) MPR Notes
AXIAL DWI 2D TSE or RESOLVE 2 0.2 YES 17 no Small FOV centered on orbits. TSE or RESOLVE to avoid warp (avoid conventional EPI). Send only B1000 & ADC. Axial coverage details above.
AXIAL T2 2D TSE 2 0.25 Dixon: InPhase & Water only 17 no Orbits only. Axial coverage details above.
COR STIR 2D STIR 2 0.25 STIR 17 no Orbits only. Coronal coverage details above.
COR T1 2D TSE 2 0.25 Dixon: InPhase & Water only 17 no Orbits only. Coronal coverage details above.
MR Orbits WO ENT Protocol image 1
MR Orbits WO ENT Protocol image 2
