Developing a Prototype

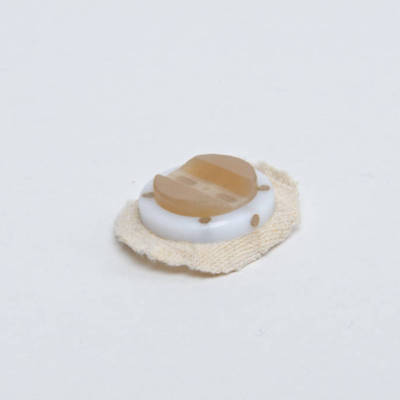

Starr-Edwards heart valve prototype with Silastic flaps
Starr-Edwards heart valve prototype with Silastic flaps

Within weeks, Edwards was sending to Starr prototypes he had constructed in his home workshop, which was now located at the family’s summer home in Brightwood, Oregon. Edwards’s first valve had a circle frame of solid Teflon that held two Silastic flaps that functioned as leaflets.

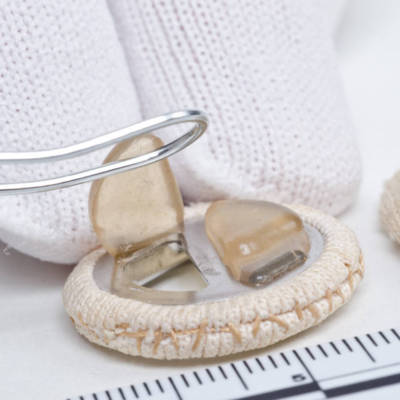

Starr-Edwards heart valve prototype with Silastic flaps
Starr-Edwards heart valve prototype with Silastic flaps

Starr sutured the first valve using ring of Teflon cloth attached to the prosthesis. It functioned for several hours before a clot formed and blocked the Silastic flaps and the animal died. Starr and Edwards developed a method for fabricating a Teflon tube of cloth material that provided a superior means of suturing the prosthesis into the mitral annulus.

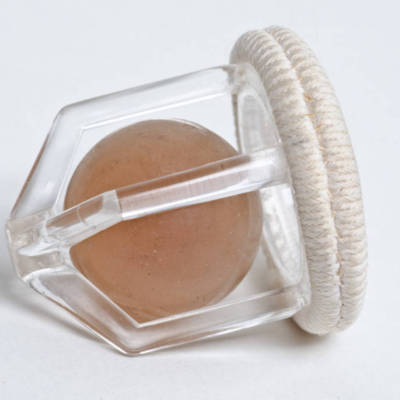

Starr-Edwards heart valve prototype
Starr-Edwards heart valve prototype

After several prototypes with Silastic flaps, Edwards and Starr decided to work on valve design that had an oscillating ball inside a cage.

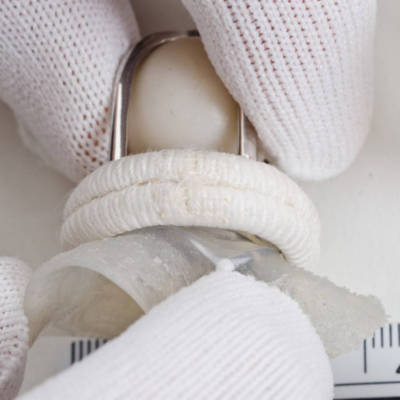

Starr-Edwards heart valve prototype with shield pulled back
Starr-Edwards heart valve prototype with shield pulled back

In the first dog, Starr inserted a ball-in-cage valve prosthesis into the mitral position. It was a spectacular success and the dog survived vigorously for months, with normal cardiovascular physiology. However, the inventors achieved long-term success with the ball-in-cage valve only after they developed a method of covering the suture line with a Silastic shield.
